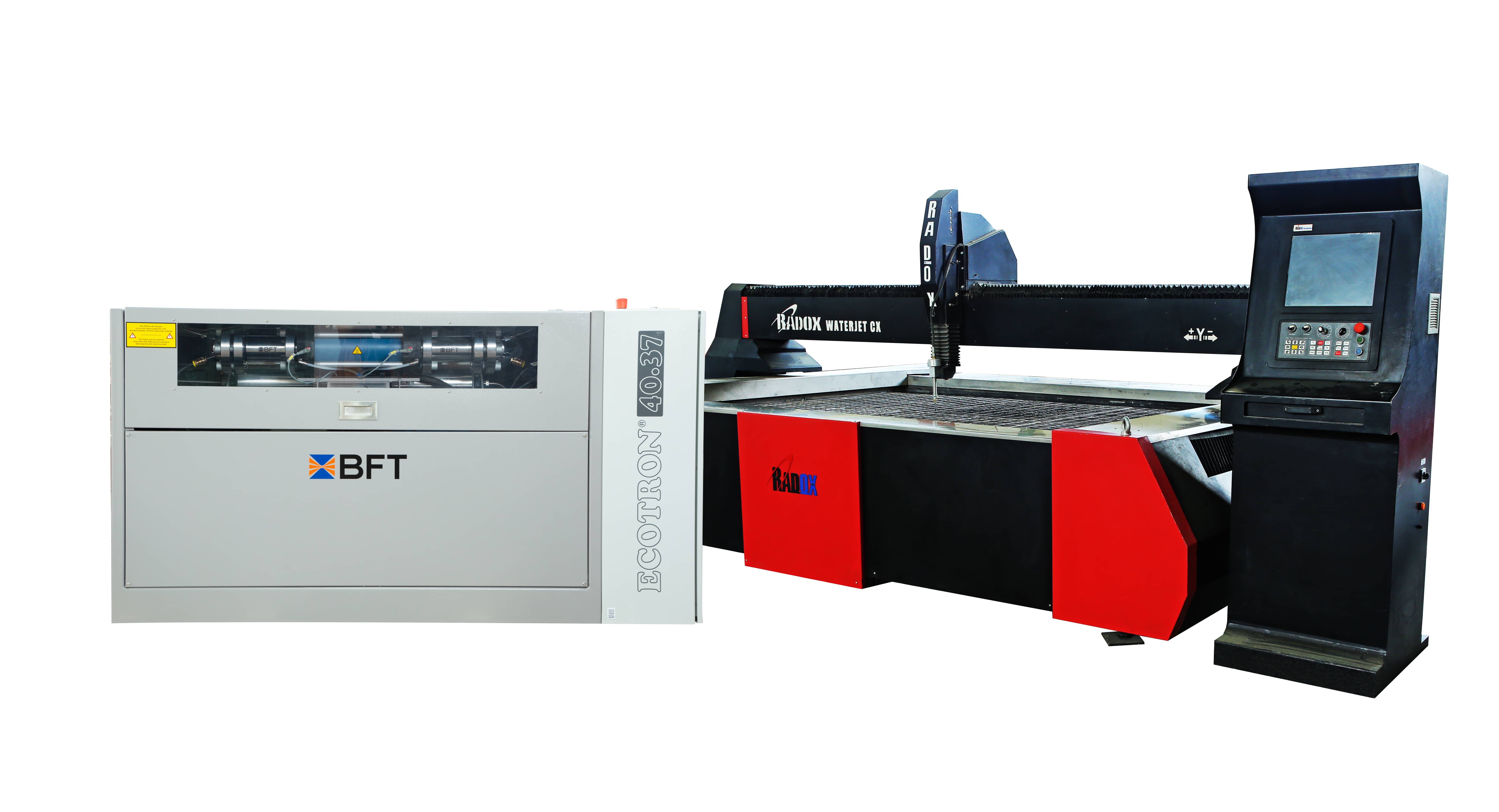

CNC Waterjet cutting machine (KMT 50HP) 3800Bar
.JPG)
RADOX presented its latest international engineering achievements in the field of CNC cutting equipment after years of research and experience. RADOX introduced the latest WATER JET CNC cutting model to different industries. Unique capabilities of this product is described below. RADOX CNC WATER JET machines has high capabilities and accuracy of this type of CNC, makes it possible to be installed and compatible with all types of international waterjet pumps.
The controllers used in WATER JET RADOX are among the latest achievements of RADOX, and one of the advantages of this model is that it is very easy to use for the device operator, which can be taught with a simple tutorial on how to work with it.
Waterjet cutting capability:
Cutting all kinds of materials:
Iron, steel, aluminum, titanium, glass, composite, plastic, stone, wood and so on.
WATER JET CNC CUTTING MACHINE
RADOX WATER JET CNC CUTTING MACHINE
Ability to cut all kinds of iron, steel, aluminum, titanium, glass, composite, plastic, stone, wood and ...
RADOX presented its latest international engineering achievements in the field of CNC cutting equipment after years of research and experience and introduced the latest WATER JET CNC cutting model to different industries.
Technical specification
| X=2.000 mm, Y=3.000 mm, Z=300 mm | Net Cutting Area |
|---|---|
| W=3.200 mm, L=4.300 mm, H=2000 mm | Overall Table Dimensions |
| 15000 mm/min | Max positioning speed |
| 3000 mm/min | Max speed in Z axis |
| ~ 3.000Kg | Weight |
| +0.15 mm per meter | Position Accuracy |
| Linear motion Guide(LM guide | X Motion |
| Screw-LM Guide-AC servo motor | Vertical movement |
| Rack and Pinion | Y Motion |
| Rail machining of all axis | |
| Rail dust protector | |
| Energy Guide chain | |
| Double drive(two servo motors in both sides of Y axis) | |
| Possible to add CNC pipe cutter | |
| Possible to add CNC bevel cutter | |
| Strong Industrial profiles structure | |
| Lubrication direct to all mechanical joints such as ball screws, guidelines and articulations | |
| Lubrication direct to all mechanical joints such as ball screws, guidelines and articulations | |
| (Gear box: APEX planetary zero back lash (taiwan |
| (Using LM GUIDE in all axes(X,Y,Z | |
|---|---|
| Sensors HOME SENSORSAND LIMITE SWITCH |
5 year CNC warranty. After sales service 15 years
